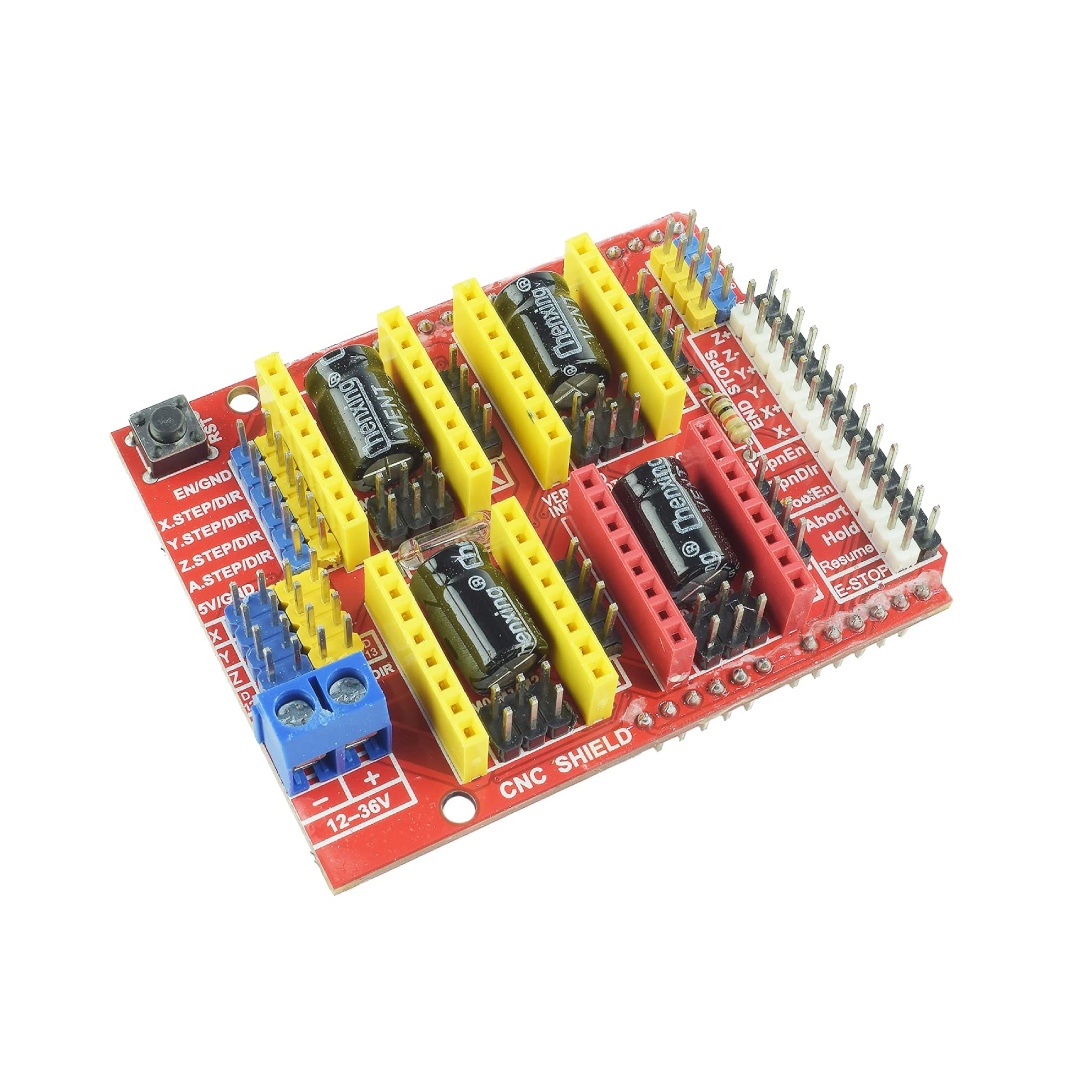

Arduino UNO CNC Shield V3
Original price was: ₹160.00.₹120.00Current price is: ₹120.00.
Supports up to 4 stepper drivers (A4988/DRV8825), endstops, spindle control, and flexible axis mapping.
Shipping & Delivery
-
Courier delivery
At the moment, we only deliver to Kharar, Bhago Majra, Chandigarh University and Gharuan
1-Day delivery
-
Free 3-Days returns
Specifications
| Version | CNC Shield V3.0 |
| Compatible board | Arduino Uno R3 |
| Motor drivers supported | A4988, DRV8825 (not included) |
| Number of axes | 4 (X, Y, Z, A – dual Y or 4th axis) |
| Microstepping | Full, Half, 1/4, 1/8, 1/16 |
| External power input | 12V to 36V DC (screw terminal) |
| Logic level | 5V DC (from Arduino) |
| Motor connector type | 2 pin headers (step/dir/enable) |
| Limit switch support | X, Y, Z endstops |
| Spindle/relay output | PWM enabled spindle control |
| Weight | 30g |
| Dimensions | 68x53x12 (mm) |
