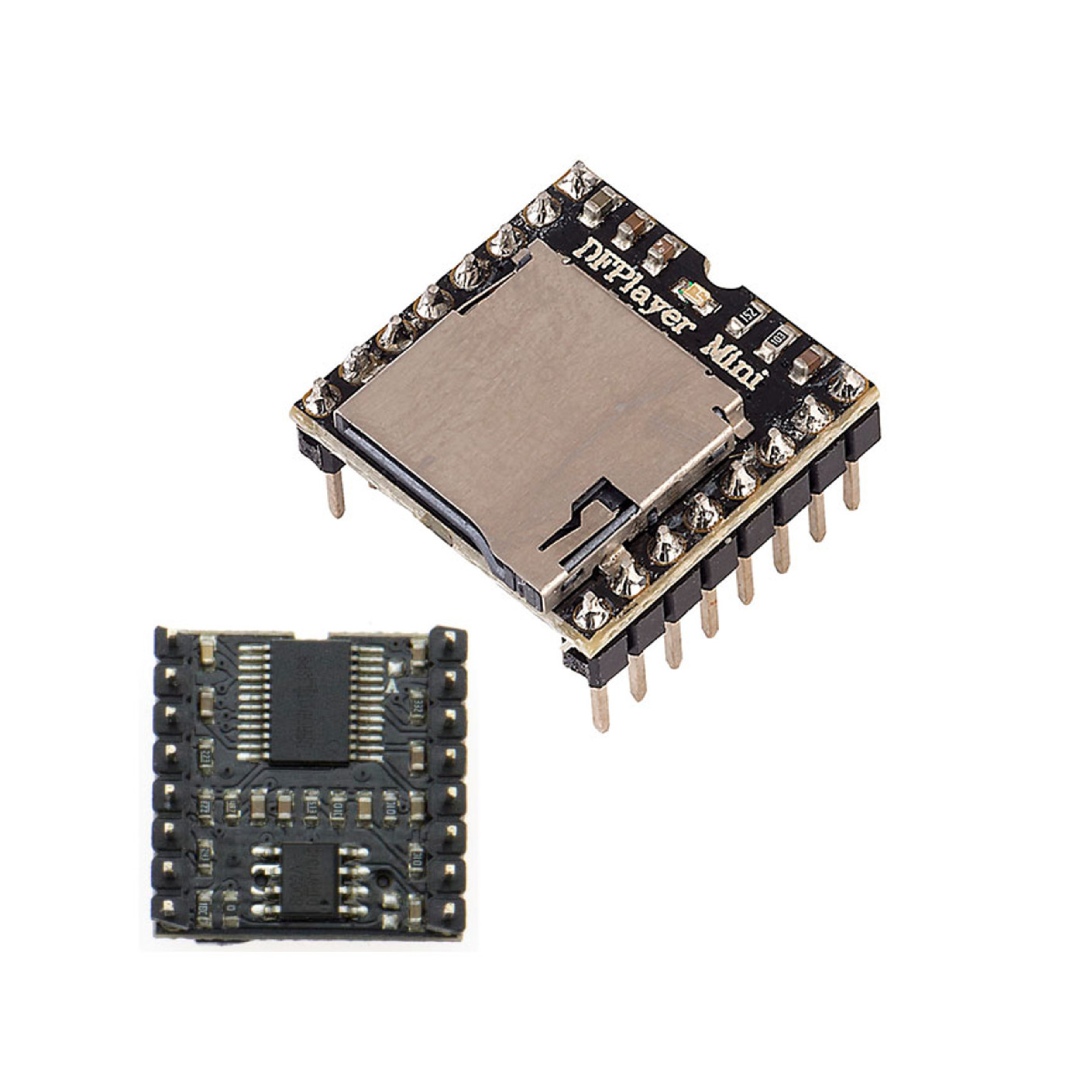

MP3 Audio Player Module with SD Card Slot
Original price was: ₹100.00.₹90.00Current price is: ₹90.00.
Built in DAC and 3W 8 ohm speaker output; supports FAT32 microSD up to 32GB and serial control commands.
Shipping & Delivery
-
Courier delivery
Get your order delivered within 24 hours
1-Day delivery
Specifications
| Model | MP3 TF 16P |
| Interface | UART |
| Audio format | MP3, WAV |
| Storage | microSD/TF up to 32GB (FAT32) |
| Operating voltage | 3.2V to 5V DC |
| Output | DAC & Speaker Out (3W 8Ω) |
| DAC | 24 bit |
| Signal to noise ratio | 85 dB |
| Sampling rate | 8/11.025/12/16/22.05/24/32/44.1/48 kHz |
| Operating temperature | -40 to 70 °C |
| Serial commands | Play, pause, next, volume, EQ, etc. |
| Current consumption | 20 mA average |
| Weight | 5g |
| Dimensions | 21x21x17 (mm) |
