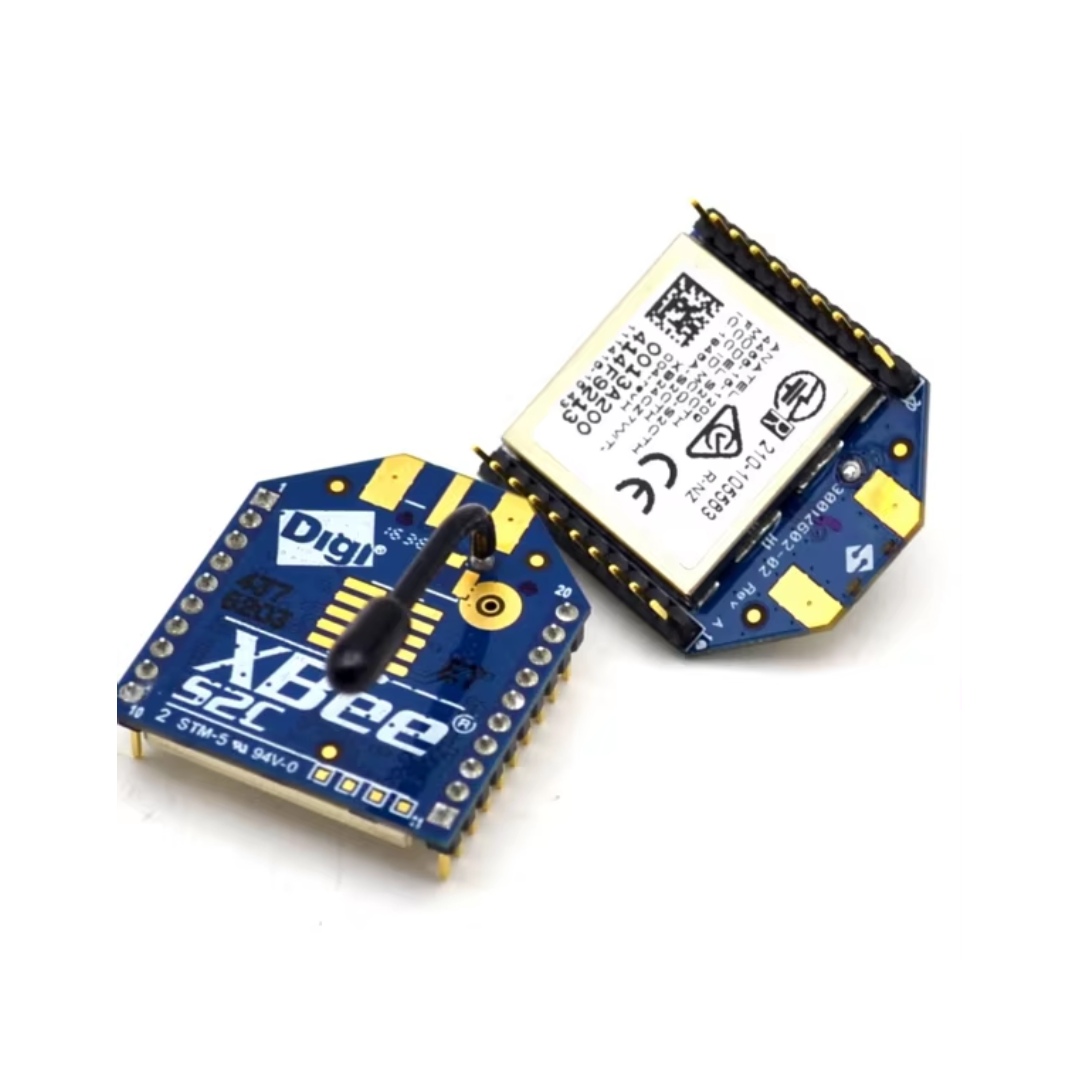

Zigbee/Xbee module | S2C
Original price was: ₹2,100.00.₹1,999.00Current price is: ₹1,999.00.
The XBee S2C module enables low power, long range wireless communication using the Zigbee mesh protocol. Ideal for IoT, sensor networks, and home automation, it supports point to point and mesh networking with reliable, low latency links.
Shipping & Delivery
-
Courier delivery
At the moment, we only deliver to Kharar, Bhago Majra, Chandigarh University and Gharuan
1-Day delivery
-
Free 3-Days returns
Specifications
| Brand | Digi |
| Model | S2C |
| Chipset | Silicon Labs EM357 SoC |
| Protocol | Digi XBee® 802.15.4 (proprietary 802.15.4) |
| Interface | UART, SPI |
| Data rate | RF 250 Kbps, serial up to 1 Mbps |
| Frequency band | ISM 2.4GHz |
| Outdoor range | Up to 1200m |
| Indoor range | Up to 60 m |
| Sensitivity | -100 dBm |
| Output power | 3.1 mW (+5 dBm) / 6.3 mW (+8 dBm) boost |
| Configuration method | API or AT commands; local or OTA |
| ADC inputs | (4) 10-bit ADC inputs |
| Input supply voltage | 2.7V – 3.6V DC |
| Encryption | 128-bit AES |
| Channels | 16 channels |
| Transmit current | 33 mA @ 3.3VDC / 45 mA boost mode |
| Receive current | 28 mA @ 3.3VDC / 31 mA boost mode |
| Operating temperature | -40°C to 90°C |
| Antenna type | Wire |
